Standard CNC Machine Tool Catalog
Vertical machining centers (VMC650, VMC850, VMC855), slant bed lathes (TCK50, TCK52, TCK56), and horizontal lathes (CK6140, CK6150, CK6160).
VMC Machining Centers
High-speed precision milling, mold manufacturing, and batch part machining.
VMC850
±0.003mmHigh-rigidity Meehanite casting with 800×500×500mm XYZ travel for heavy mold & steel machining.

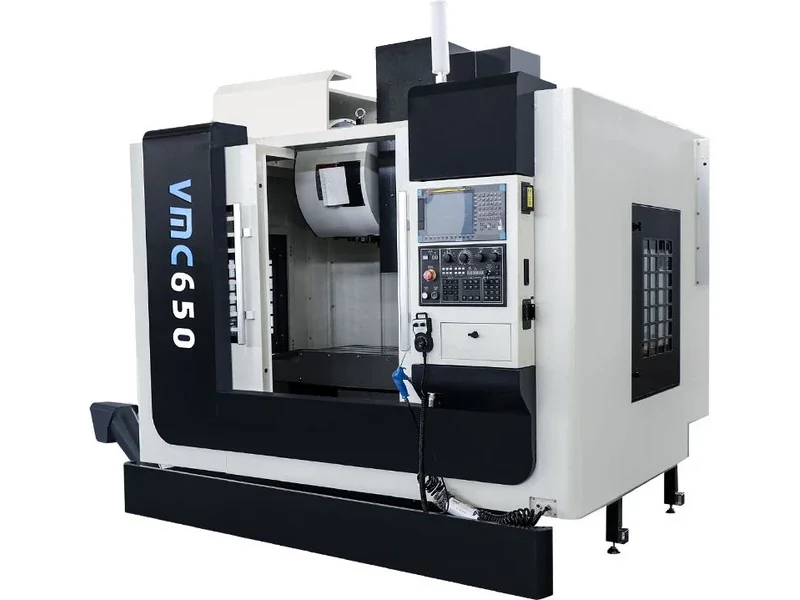

VMC650
±0.003mmCompact footprint with 650×400×500mm XYZ travel, 36m/min rapids, optimized for small precision parts & electronics.
VMC855
±0.003mmWidened span 850×550×550mm travel with 45mm heavy roller guides for deep mold cavity carving.
TCK Slant Bed Lathes
30°/45° true slant bed casting, fast hydraulic turret, and heavy-duty turning capacity.
TCK50
±0.003mmTrue 45° slant bed, 500mm swing, 8" hydraulic chuck, 8/12-station hydraulic turret for high-speed batch turning.
TCK52
±0.003mmEnhanced 520mm turning capacity, 10" hydraulic chuck, high-torque spindle for tough steel & alloy shafts.

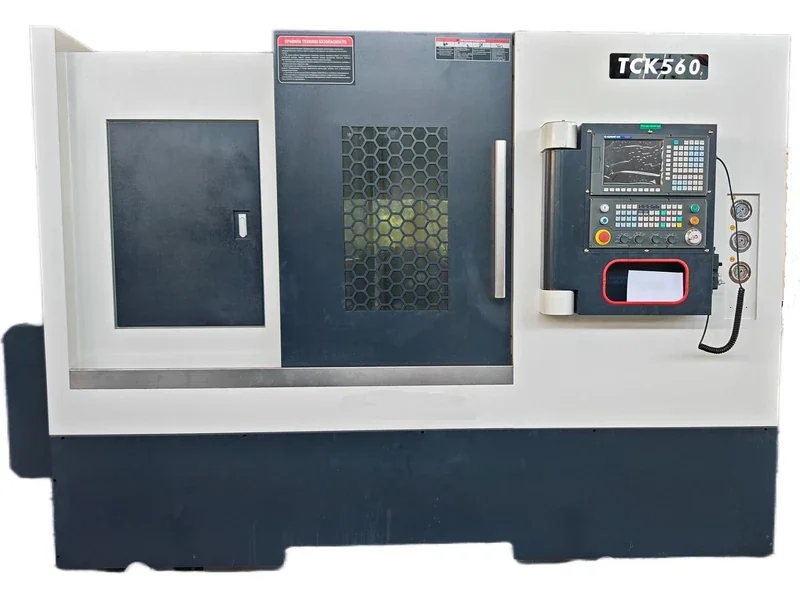

TCK56
±0.003mmLarge swing 560mm, big spindle bore ø105mm (A2-8/A2-11), built for oil tubulars, pipes, and large flanges.
CK Horizontal Lathes
Universal heavy-duty turning, wide induction hardened bed ways, and large spindle bore.
CK6140
±0.003mm400mm swing, 360mm bed width, induction-hardened guideways, economical precision turning for job shops.
CK6150
±0.003mm500mm swing, 400mm bed width, large ø82mm spindle bore, high torque for heavy steel shaft and flange turning.

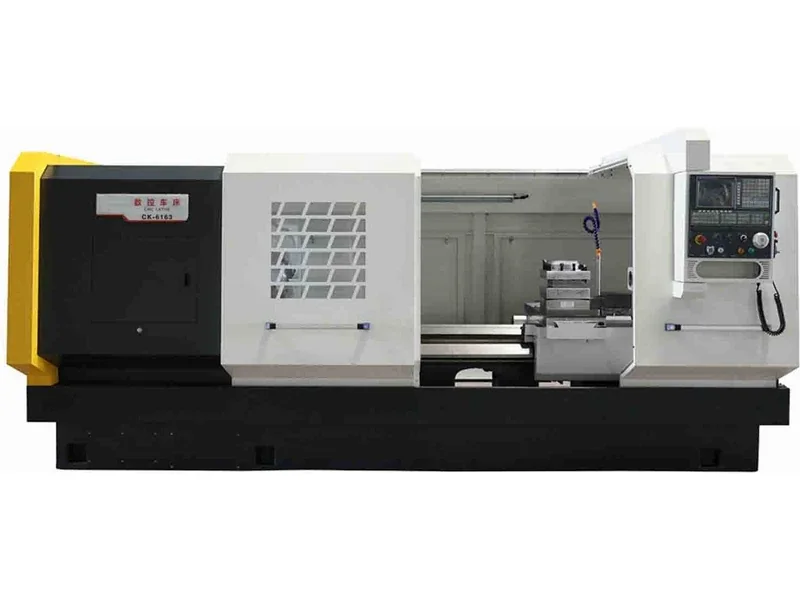

CK6160
±0.003mm630mm swing, 400/550mm bed, lengths up to 3000mm, heavy workpiece load capacity up to 2.5 tons.
Need a Customized Machine Specification?
We offer custom spindle speeds, specialized hydraulic fixtures, Renishaw optical workpiece probes, and dual-spindle turning solutions. Contact our engineering team for a feasibility assessment.
